For professional distributors, choosing a manufacturing partner is a critical decision. It's not just about price and product; it's about consistency, reliability, and the confidence that every item in a container will uphold your brand's reputation.
At Hantechn, we believe this trust is earned through transparency and an unwavering commitment to process. We invite you behind the scenes to see the engineering, craftsmanship, and rigorous checks that transform raw steel and wood into the durable, high-performance garden tools your market demands.
The journey of a Hantechn shovel begins not with cutting, but with creation under force.
Step 1: From Billet to Blade
We start with high-carbon steel billets, chosen for their superior strength and ability to be heat-treated. These billets are precisely cut to weight, ensuring consistency from the very first step.

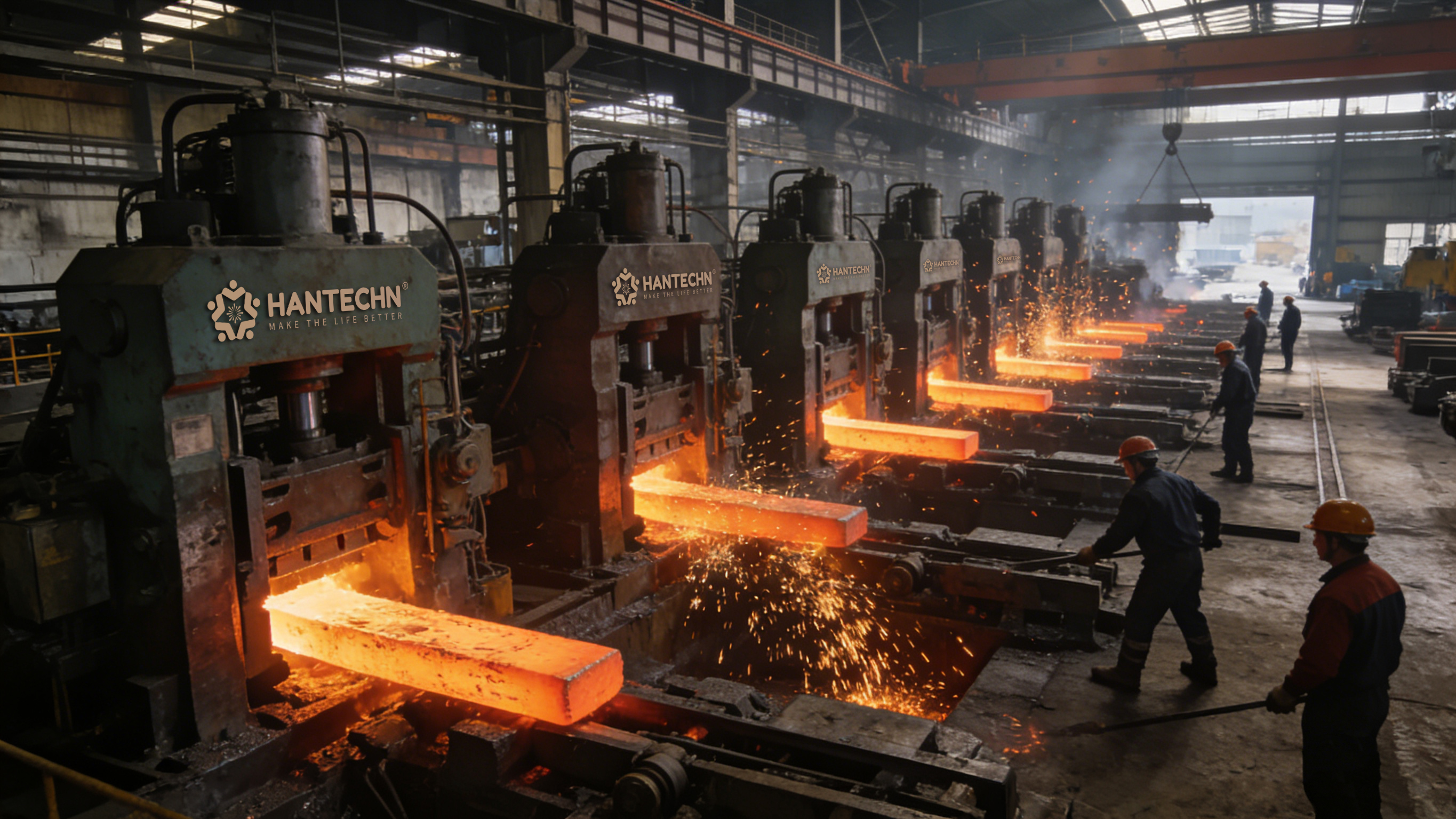

Step 2: The Forging Fire & Hammer
The cut steel is heated in our furnaces to over 1,000°C until it reaches a bright, orange-yellow glow. This critical temperature makes the metal malleable. It is then swiftly transferred to a computer-controlled drop forge.
The Power of the Press: Under immense hydraulic pressure (measured in tons), the hammer die shapes the glowing steel into the rough form of a shovel blade or fork head. This isn't just shaping; it's densifying the metal's grain structure, making it far tougher and more impact-resistant than stamped alternatives.
Step 3: Trimming & Forming
The forged "blank" is then trimmed of excess material (flash) in a precision die and undergoes secondary pressing to refine its final shape and create critical features like the reinforced socket.
Raw forging creates a strong shape, but the right microstructure creates a superior tool.
Hardening: The forged components are heated again in a controlled atmosphere furnace and then rapidly quenched in oil. This process creates an extremely hard, wear-resistant structure.
Tempering: Pure hardness can be brittle. To achieve the perfect balance, the tools are reheated to a specific, lower temperature and held, then cooled. This tempering process reduces brittleness while retaining hardness, giving our tools their renowned ability to hold an edge and resist bending or cracking—the hallmark of professional-grade performance.
A tool is only as strong as its weakest point, most often where the handle meets the head.
For Wooden Handles: The Solid Socket & Rivet System
Handle Selection & Shaping: We use kiln-dried, straight-grain Ash or Hickory. Each handle is machined to fit perfectly into the forged steel socket.
The Driving & Riveting: The handle is driven with force into the socket. We then drill through both the solid socket walls and the wood, inserting heavy-duty steel rivets which are mechanically flared. This creates a permanent, mechanical lock that will not loosen, unlike cheap glued or pinched connections.
For Fiberglass Handles: The VPAT (V-Pattern Anti-Twist) System
The fiberglass handle is injection-molded with a splayed "V" end. It is inserted into the socket and secured with a high-strength resin and a through-bolt, creating a union that is incredibly strong and immune to rot or moisture.
Quality isn't inspected in; it's built in at every stage and then verified relentlessly.
Stage 1: Incoming Material Inspection: We test sample batches of steel and wood for compliance with our hardness, grain, and density specifications.
Stage 2: In-Process Checks (IPQC): Operators check critical dimensions, forging integrity, and heat treatment results on the production line.
Stage 3: Final Assembly Audit: Every single tool is inspected for:
Finish: Smoothness of powder coat, absence of drips or thin spots.
Alignment: Straightness of handle and head.
Connection Integrity: Rock-solid attachment with zero play.
Visual & Functional Check: Sharp edges, smooth grips, overall workmanship.
Stage 4: Final Random Sampling (AQL): Before shipment, a statistically significant sample from each batch undergoes more rigorous tests, including destructive testing on sample units to validate weld strength and handle retention beyond normal use limits.
Surface Preparation: All metal parts are thoroughly cleaned and phosphated to create a surface that maximizes paint adhesion and provides an extra layer of rust inhibition.
Powder Coating: We use electrostatic powder coating, not cheap liquid paint. The powder is applied and then cured in an oven, forming a thick, uniform, and highly durable finish that is chip- and corrosion-resistant. Color consistency is guaranteed.
This behind-the-scenes look is more than a tour; it's an open book on our philosophy. Every step in the Hantechn process—from the roar of the forge to the quiet scrutiny of the final inspector—is designed with one goal: to provide you, our distributor partner, with a product so consistently reliable that it becomes the cornerstone of your customers' trust in you.
When you partner with Hantechn, you're not just sourcing tools. You're investing in a process engineered for confidence.
