Modern commercial cultivation is managed by multiple independent systems: irrigation, climate control, lighting, and CO2 enrichment. When these systems operate in silos, they often work against each other—lights heat the room, triggering HVAC, while irrigation runs on a fixed timer, oblivious to plant transpiration rates.

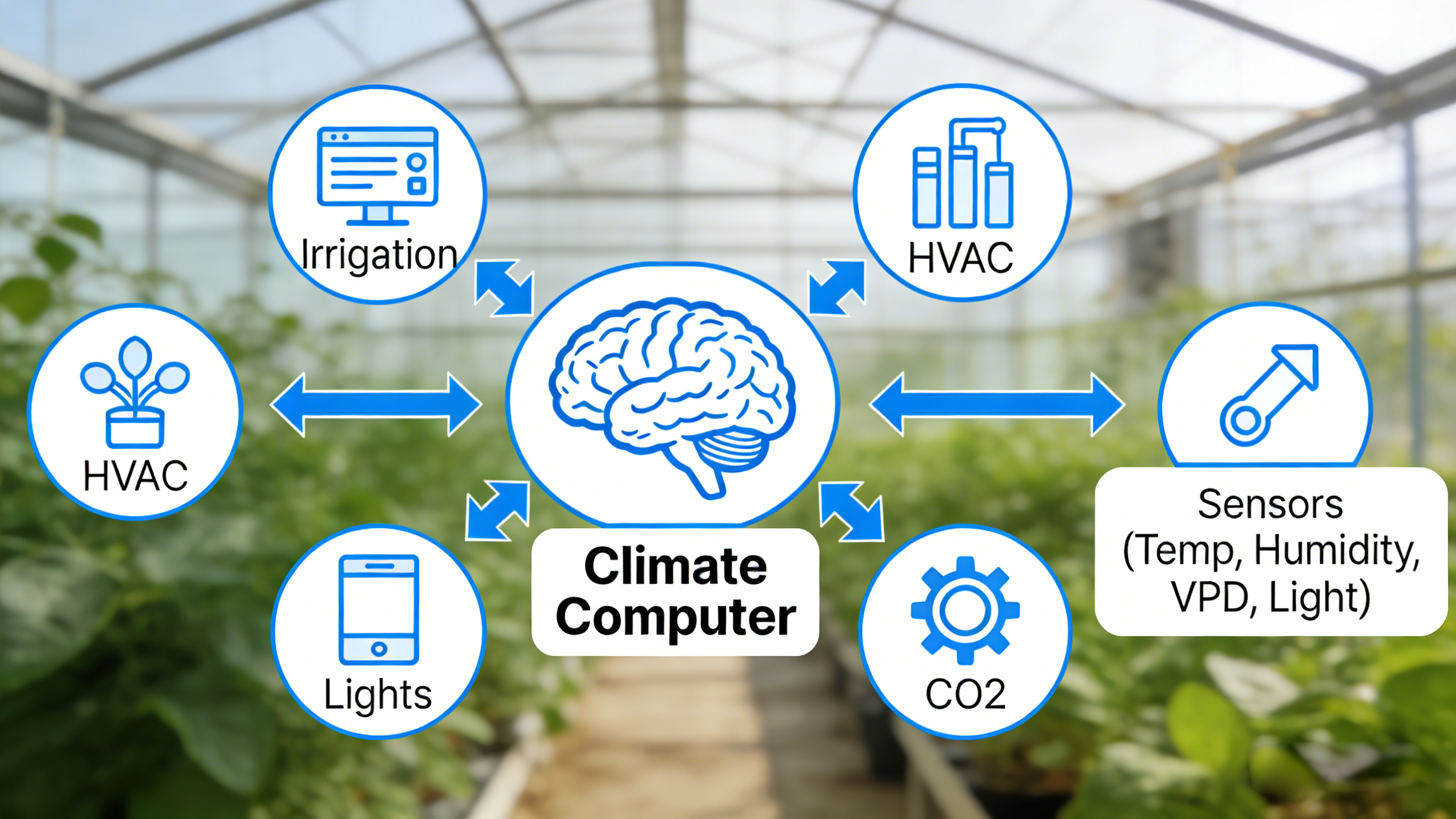

The true potential of a “smart” farm is realized not by having individual smart devices, but by creating a unified, intelligent ecosystem. This is achieved through integration: connecting your high-precision irrigation system directly to your environmental sensors and climate computer. The result is a responsive, adaptive growing environment that optimizes every input for maximum plant performance.
Integration transforms automation from simple scheduling into dynamic optimization. Here’s how:
Adaptive Irrigation Based on Plant Demand: Instead of a fixed timer, irrigation events can be triggered or modified by Environmental Data. For example, irrigation can be linked to Daily Light Integral (DLI) or temperature, applying more water during high-transpiration periods and less during low-light periods.
Precise Control of Vapor Pressure Deficit (VPD): VPD is the single most important holistic climate parameter. An integrated system can use irrigation (affecting relative humidity via transpiration) and climate control (dehumidification) in concert to maintain the perfect VPD range, drastically improving nutrient uptake and plant health.
Predictive Management & Labor Savings: The system can predict EC/pH drift based on irrigation volume and environmental conditions, alerting growers before a correction is critically needed. It automates the complex dance between irrigation and climate, freeing growers for higher-value tasks.
Data Unification for Root-Cause Analysis: When a crop issue arises, you can cross-reference irrigation data (EC, pH, feed times) with climate data (temp, humidity, light) on a single timeline. This turns problem-solving from guesswork into forensic science.
Understanding the communication “language” between systems is key. Here are the primary methods:
A. Relay/Dry Contact Control (Basic & Universal)
How it Works: The climate computer uses a physical on/off switch (a relay) to activate a circuit on the irrigation controller, starting a pre-set irrigation cycle.
Analogy: Flipping a light switch from another room.
Pros: Universally compatible, simple, reliable.
Cons: One-way communication only. The climate computer can start an irrigation cycle but cannot receive data (like current EC/pH) back from the irrigation system.
B. Analog Signal Integration (0-10V / 4-20mA)
How it Works: The climate computer sends a variable voltage or current signal to command the irrigation system. For example, a 0-10V signal could correspond to 0-100% pump speed or a target EC value.
Pros: Allows for proportional control (not just on/off). Standard in industrial automation.
Cons: Still primarily one-way command. Requires compatible input/output modules on both devices.
C. Digital Communication (The Future-Proof Standard)
How it Works: Systems “talk” using a shared digital protocol over a network (e.g., Ethernet, RS-485).
Common Protocols: Modbus TCP/RTU (the industrial workhorse), MQTT (common in IoT), or proprietary APIs.
How it Works in Practice: The climate computer can both send commands (“Start Zone 3 for 5 minutes”) and query data (“What is the current reservoir pH and last irrigation volume?”) from the irrigation system.
Pros: Full bi-directional data exchange. Enables true, condition-based automation and centralized data logging.
Cons: Requires both devices to support the same protocol and configuration expertise.
Scenario 1: Light-Based Irrigation Triggering (Using Relays)
Setup: Connect the climate computer’s relay output to the irrigation controller’s “manual start” input.
Logic: Program the climate computer to close the relay (trigger irrigation) 15 minutes after the lights turn on each morning, when plants begin active transpiration. Simple, effective, and improves on a fixed timer.
Scenario 2: VPD-Driven Irrigation Frequency (Using Digital/Modbus)
Setup: Both systems connected on a Modbus network.
Logic: The climate computer continuously calculates VPD. If VPD rises above the optimal range (indicating high transpiration demand), it can increase the frequency of short irrigation cycles to ensure root zones don’t dry out. If VPD is low, it can skip or delay cycles to prevent overwatering.
Scenario 3: Predictive Nutrient Management (Advanced Digital Integration)
Setup: Full digital integration with sensors for irrigation (EC, pH, flow meter) and climate (temp, light, humidity).
Logic: The central software analyzes cumulative light and temperature data to model plant growth and nutrient uptake. It can then automatically adjust the EC setpoint on the irrigation dosing system or schedule a nutrient tank refresh based on predicted consumption, not just reaction to sensor drift.
Many irrigation systems are “smart islands” with closed ecosystems. Hantechn systems are designed as open platform components for your integrated farm.
Standardized Communication Ports: Our advanced controllers come equipped with Modbus TCP/RTU and relay outputs as standard, speaking the language of industrial climate computers (e.g., Priva, Hoogendoorn, Argus).
Transparent Data Points: We provide a clear Modbus register map detailing every accessible data point (sensor readings, valve states, pump status) and command, making integration engineering straightforward.
Technical Partnership: Our support includes guidance on wiring diagrams, protocol configuration, and logic development to ensure your integrated system performs as envisioned.
In the race for cultivation efficiency and consistency, the winner is not the farm with the most expensive individual components, but the one with the most intelligent synergy between them. Integrating your irrigation with the broader climate environment is the definitive step from automated farming to truly adaptive, precision agriculture.
It represents the pinnacle of control, where technology works in concert to maintain the perfect equilibrium for plant growth, turning data into decisive action.
